Secondary Termination Switchgear
Power Design’s multi-connection pad mount switchgear & wall mount secondary termination are suitable for up to 600V. It is offered with either high-conductivity copper bus with current rating 1600A through 4300A , aluminum bus bar with a current rating 1300A through to 2900A, or 22 position aluminum set screw connectors with a 4,000A current rating for #2 – 750MCM conductor range. These current ratings for either cooper or aluminum bus bar option are based on all source cables on one side and all taps on the opposite side (S-T connection). Higher ratings up to 7,740A are available when all sources are in the center and all taps are at the end (T-S-T connection).

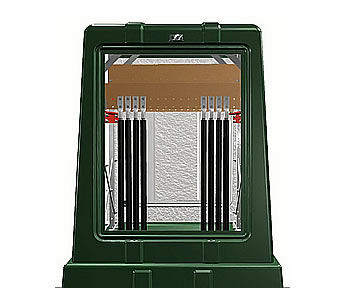

The pad mount secondary termination bus is on a free-standing welded aluminum steel frame which is enclosed in fiberglass pad mount enclosure with (2) lift-off doors and SS hardware, The bus bar has up to (17) NEMA two-hole per phase & neutral. Both 18” and 30” box pads are offered as an option. The wall mounted secondary termination is on a custom welded aluminum steel frame enclosed in a clear lexan case designed to be wall mounted Custom 600V termination switchgear is available.
Our secondary terminal switchgear are available in both pad mount & wall mount versions with the following features;
Secondary Termination Switchgear Key Features
-
-
- Available with either high-conductivity copper bus with current rating 1600A through 4300A, aluminum bus bar with a current rating 1300A through to 2900A based on S-T connections
- Higher ratings up to 7,740A are available with cooper bus bar when all sources are in the center and all taps are at the end (T-S-T connection)
- Both copper & aluminum bus bar has up to (17) NEMA two-hole per phase & neutral
- 22 or 30 position aluminum set screw connectors with a 4,000A current rating are available
- Available in a pad mount or wall mount designs
- Fiberglass enclosure. (2) two hinged double doors with captive penta head bolts and padlocking provisions, and removable eyes for lifting enclosure and frame as one unit
- The 600V termination switchgear is housed in fiberglass outdoor, weatherproof enclosure (2) Lift-off single doors with captive penta head bolts and padlocking provisions and removable eyes for lifting enclosure and frame as one unit.
- Fiberglass laminate is 3/16″ nominal thickness except where local reinforcement is required.
- Enclosure exterior is gel-coated to .014-inch nominal thickness standard and is available in either munsell green, willow green, or light gray colors
- Stainless steel louvers shall be provided with stainless steel screen baffle for adequate air flow and heat dissipation as required for enclosed equipment.
- Free standing aluminum steel frame
- Optional 3/8” solid copper ground bar
- Optional 18” or 30” high fiberglass box pad
-
Wall Mount Secondary Termination Switchgear Key Features
-
-
- Available with either high-conductivity copper bus with current rating 1600A through 4300A, aluminum bus bar with a current rating 1300A through to 2900A based on S-T connections
- Higher ratings up to 7,740A are available with cooper bus bar when all sources are in the center and all taps are at the end (T-S-T connection)
- Both copper & aluminum bus bar has up to (17) NEMA two-hole per phase & neutral
- 22 or 30 position aluminum set screw connectors with a 4,000A current rating are available
- Aluminum steel for either Aluminum set screw connectors or copper/aluminum bus bar encased in 1/4″ clear lexan.
-
Drawings ~ 600V Secondary Termination Switchgear
Our single & three phase pad mount & wall mounted secondary switchgear are available with either high-conductivity copper bus with current rating 1600A through 4300A, aluminum bus bar with a current rating 1300A through to 2900A based on S-T connections. Higher ratings up to 7,740A are available with cooper bus bar when all sources are in the center and all taps are at the end (T-S-T connection). Both copper & aluminum bus bar has up to (17) NEMA two-hole per phase & neutral. 22 or 30 position aluminum set screw connectors with a 4,000A current rating are also available. Drawings (PDF Files) can be downloaded by click the individual model part number.
| Drawings | Type | Connectors | Positions per Φ plus Neutral | Volt | Amps | Phase | Application Notes |
|---|---|---|---|---|---|---|---|
| PS4-44-2222-L2-MG-XY | Pad Mount | CU or Alum. Bus | (17) - NEMA 2 Hole | 600 | 1,300 to 7,740 | 3 | Amperage Table |
| PS2-1582-L2-MG | Pad Mount | Alum Set Screws | (22) - NEMA 2 Hole | 600 | 4000 | 3 | #2-750 MCM |
| MB-40-30-1766 | Wall Mount | CU Bus - 1/4" x 3" | (30) - NEMA 2-Hole | 600 | 4000 | 3 | 1/4" X 3" Cu |
Videos ~ 600V Secondary Termination Switchgear
Below are links to product, repair, & instructional videos for our 600V secondary termination switchgear that are on our YouTube & Vimeo channels. Please check back as we continue to add additional valuable information.
Specifications & Resources ~ 600V Secondary Termination Switchgear
Below are links to specifications & resource materials for our 600V Secondary Termination Switchgear that can be downloaded. Please check back as we continue to add additional valuable information.
Specifications:
Resource Material:
Quote Request ~ 600V Secondary Termination Switchgear
Design your own multi-connection 600V secondary termination switchgear by completing the form below with as much information as you can and submit it to our sales department. Our multi-connection secondary termination switchgear is suitable for up to 600V and is offered with either high-conductivity copper bus with current rating 1600A through 4300A , aluminum bus bar with a current rating 1300A through to 2900A, or 22 position aluminum set screw connectors with a 4,000A current rating for #2 – 750MCM conductor range. Secondary terminations can be housed in either a pedestal, enclosure, or configured to be wall mounted. A sale representative will contact you to review request with a few days.
