CJP-35/A & 35/B ~ 35kV 200A

Both the CJP-35/A & CJP-35/B three phase direct buried cable junction pedestal 200A 35kV special series are made with fire retardant fiberglass and protected with UV stabilized gel coat. Optional 200 35kV 2/3-Way junctions are also offered. We certify that all cable junction pedestals conforms to IEEE C57-12-28 Pad mounted Enclosure Integrity Standard.

Both our three phase direct buried CJP-35/A & CJP-35/B cable junction pedestal 200A 35kV special series are available in the following configurations/options;

      • Design – Direct Buried
      • Heights – 41”, 50”, & 56″
      • Top Depth – 32″
      • Top Width – 62″
      • Standard Colors – Willow Green (MG), Munsell Green (MG) or Light Gray (LG). Special colors are also available.
      • Safety – Reflective smooth white gel coat interior finish for stickers to adhere to.
      • Lifting  Two lifting nuts  located on both sides of the pedestals allowing it to be lifted the same way as  a single phase transformer is slung.
      • Parking Stands – (6) Adj SS parking stands above Junctions (35/A) or below junctions (35/B)
      • Optional Junctions – (3) 2/3-Way 200A, 35kV
      • Optional Ground Bar – #2 Solid Copper Bus Bar (-GB2), 3/8” Solid Copper Bus Bar (-GB38)
      • Optional Ventilation Louvers – (2) SS Louvers W/ SS Screens, 5.1/4″ X 5.1/4″, one each Installed one each side of top

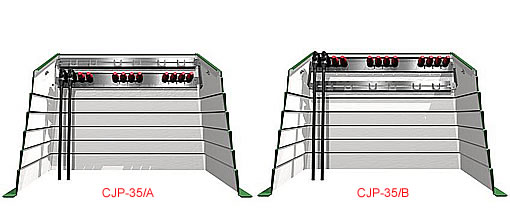

Drawings ~ Three Phase Cable Junction Pedestal

Our three phase cable junction pedestal series is made with fire retardant fiberglass and protected with UV stabilized gel coat and is available in direct buried or pad mounted configurations. Optional solid copper ground and 200A or 600A, 15/25/35 kV , 2-Way, 3-Way, or 4-Way junctions are also offered. Our three phase pedestals are offered in various configurations &  sizes. Below are a few examples including our standard table drawings. Drawings (PDF Files) can be downloaded by click the individual model part number.

DrawingsTypeAmpsVoltageStandsHeightTop Width x Depth
CJP-30-3337Direct Buried200A15/25KVABOVE41", 50", 56"W-55" x D-27"
CJP-30-3350Direct Buried600A15/25KVABOVE41", 50", 56"W-55" x D-27"
CJP-31-3338Direct Buried200A15/25KVBELOW41", 50", 56"W-55" x D-27"
CJP-31-3351Direct Buried600A15/25KVBELOW41", 50", 56"W-55" x D-27"
CJP-32-3331Direct Buried200A15KVINLINE41", 50", 56"W-55" x D-27"
CJP-33-3330Direct Buried200A15KVSLANT41", 50", 56"W-55" x D-27"
CJP-35/A-3339Direct Buried200A15/25KVABOVE41", 50", 56"W-62" x D-32"
CJP-35/A-3352Direct Buried600A15/25KVABOVE41', 50" 56"W-62" x D-32"
CJP-35/A-3361Direct Buried200A35KVABOVE41", 50", 56"W-62" x D-32"
CJP-35/A-3366Direct Buried600A35KVABOVE41", 50", 56"W-62" x D-32"
CJP-35/B-3340Direct Buried200A15/25KVBELOW41", 50", 56"W-62" x D-32"
CJP-35/B-3353 Direct Buried600A15/25KVBELOW41", 50", 56"W-62" x D-32"
CJP-35/B-3362Direct Buried200A35KVBELOW41", 50", 56"W-62" x D-32"
CJP-35/B-3367Direct Buried600A35KVBELOW41", 50", 56"W-62" x D-32"
CJP-35/B-3393Direct Buried600A35KVBELOW41", 50", 56"W-62" x D-32"
CJP-35/S-3341Direct Buried200A15/25KVSLANT41", 50", 56"W-62" x D-32"
CJP-35/S-3354Direct Buried600A15/25KVSLANT41", 50", 56"W-62" x D-32"
CJP-40-3342Direct Buried200A15/25KVABOVE41", 50", 56"W-69" x D-32"
CJP-40-3355Direct Buried600A15/25KVABOVE41", 50", 56"W-69" x D-32"
CJP-40-3363Direct Buried200A35KVABOVE41", 50", 56"W-69" x D-32"
CJP-40-3368Direct Buried600A35KVABOVE41", 50", 56"W-69" x D-32"
CJP-41-3343Direct Buried200A15/25KVBELOW41", 50", 56"W-69" x D-32"
CJP-41-3369Direct Buried600A15/25KVBELOW41", 50", 56"W-69" x D-32"
CJP-41-3364Direct Buried200A35KVBELOW41", 50", 56"W-69" x D-32"
CJP-41-3369Direct Buried600A35KVBELOW41", 50", 56"W-69" x D-32"
CJP-42-3344Direct Buried200A15/25KVINLINE41", 50", 56"W-69" x D-32"
CJP-42-3357Direct Buried600A15/25KVINLINE41", 50", 56"W-69" x D-32"
CJP-43-3358Direct Buried600A15/25KVSLANT41", 50", 56"W-69" x D-32"
CJP-43-3365Direct Buried200A35KVSLANT41", 50", 56"W-69" x D-32"
CJP-43-3370Direct Buried600A35KVSLANT41", 50", 56"W-69" x D-32"
CJP-84-1998Direct Buried200A15/25KVINLINE41", 50", 56"W-81.3/4" x D-24"
CJPF-30-3375Padmount200A15/25KVABOVE30", 41"W-55" x D-27"
CJPF-30-3385Padmount600A15/25KVABOVE30", 41"W-55" x D-27"
CJPF-31-3376Padmount200A15/25KVBELOW30", 41"W-55" x D-27"
CJPF-31-3386Padmount600A15/25KVBELOW30", 41"W-55" x D-27"
CJPF-32-3374Padmount200A15/25KVINLINE30", 41"W-55" x D-27"
CJPF-33-3377Padmount200A15/25KVINLINE30", 41"W-55" x D-27"
CJPF-35/A-3378Padmount200A15/25KVABOVE30", 41"W-62" x D-32"
CJPF-35/A-3387Padmount600A15/25KVABOVE30", 41"W-62" x D-32"
CJPF-35/B-3379Padmount200A15/25KVBELOW30", 41"W-62" x D-32"
CJPF-35/B-3388Padmount600A15/25KVBELOW30", 41"W-62" x D-32"
CJPF-35/S-3380Padmount200A15/25KVSLANT30", 41"W-62" x D-32"
CJPF-35/S-3389Padmount600A15/25KVSLANT30", 41"W-62" x D-32"
CJPF-40-3381 Padmount200A15/25KVABOVE30", 41"W-69" x D-32"
CJPF-40-3390Padmount600A15/25KVABOVE30", 41"W-69" x D-32"
CJPF-41-3382Padmount200A15/25KVBELOW30", 41"W-69" x D-32"
CJPF-41-3391Padmount600A15/25KVBELOW30", 41"W-69" x D-32"
CJPF-42-3383Padmount200A15/25KVINLINE30", 41"W-69" x D-32"
CJPF-42-3392Padmount600A15/25KVINLINE30", 41"W-69" x D-32"
CJPF-84-2007Padmount200A15/25KVINLINE30", 41"W-81.3/4" x D-24"

Videos ~ Cable Junction Pedestal

Below are links to product, repair, & instructional videos for the pedestals that are on our YouTube & Vimeo channels. Please check back as we continue to add additional valuable information.

Videos:

Specifications & Resources ~ Cable Junctions Pedestals

Below are links to sample specifications for the pedestals along with resource material that can be downloaded. Please check back as we continue to add additional valuable information.

Specifications:

Resource Materials:

Quote Request ~ Three Phase Pedestals

Design your own three phase cable junction pedestal  by completing the form below with as much information as you can and submit it to our sales department.  Both our three phase direct buried & pad mount cable junction pedestals are made with fire retardant fiberglass and protected with UV stabilized gel coat. Optional 200/600A 15/25/35kV 2/3/4-way junctions & copper ground bar are offered. We certify that all cable junction pedestals conforms to IEEE C57-12-28 Pad mounted Enclosure Integrity Standard.  A sales representative will review your request and contact you if there are any questions. Else wise, a sales representative will email you a quote in the next few days
